Series 950 Screw-to-Tab Terminal Blocks

Rated 30A / up to 600V / AWG 10-18

Home

Product Description:

A family of sturdy nylon 6.6 molded screw-to-tab terminal blocks in 2 to 4 pole configurations with pressure plate style terminals for the field wires and standard .250 quick connect tabs for the factory wiring harness.

Application:

The 950 40 Series is for use in appliances, controls, instruments and other equipment designed for North America and /or international markets where UL, CSA, VDE, KEMA and SEMKO standards are accepted.

Advantages:

• Screw type terminals accommodate AWG 10-16 wires (solid) or  AWG 10-18 (stranded).
• Poles are clearly labeled, custom labeling is available
• 2, 3 and 4 pole configurations with 2 or 3 quick connect tabs per pole, brass or tin-plated brass

---> click here to view our complete catalog on terminal blocks (pdf) <---

Home

for a Complete Solution:

Series 950 40 Terminal Blocks used in conjunction with HSU's own Z-Series Strain Relief Fittings provide a complete power entry solution for markets where UL, CSA, VDE, KEMA and SEMKO standards are accepted.

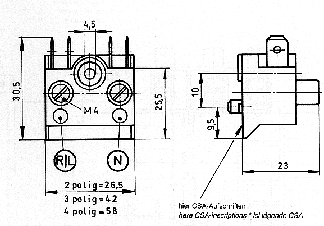

All dimensions are in mm
